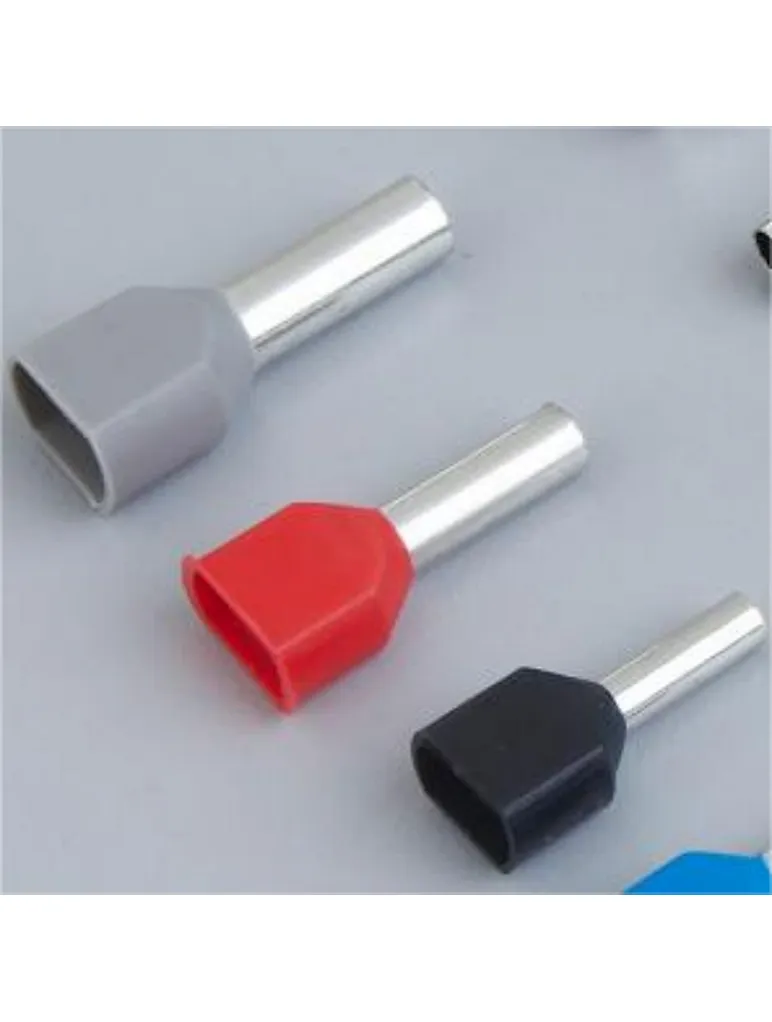

Twin Cord-End Terminals
Twin-barrel ferrules for two-wire terminations - 15 sizes, 6 colors.
Twin Cord-End Terminals solve the two-wire termination problem cleanly: one ferrule, two barrels, and a single screw terminal connection that holds both conductors. Instead of stacking wires and hoping the clamp grips both, you crimp a twin ferrule and make one reliable termination.
The terminal is crafted from high-quality, oxygen-free copper with tin plating for superior conductivity and corrosion resistance. The durable PP or nylon insulation sleeve codes the size - red, blue, white, green, yellow and grey - and provides strain relief at the clamp point.
The range spans 15 sizes, matching common conductor cross-sections for the two-wire combinations you actually meet in control panels and equipment wiring. These vinyl-insulated cord-end terminals deliver dependable performance and long-lasting durability for industrial, automotive and general electrical wiring.
Key Features
- Twin barrels terminate two wires in one ferrule
- Oxygen-free copper with tin plating
- PP/nylon insulation in 6 colors
- One screw-terminal connection holds both conductors
- 15 sizes in the range
- Strain relief at the termination point
Applications
Control panels, terminal blocks and equipment wiring where two conductors must be terminated reliably in a single clamp.
Specifications
| ITEM NO. | Conductor (mm2) | Dimensions (mm) | Color | |||||
|---|---|---|---|---|---|---|---|---|
| F | L | W | B | фC | фD | |||
| TE0508 | 2x0.5 | 8.0 | 14.5 | 5.0 | 6.5 | 1.5 | 1.8 | WHITE |
| TE7508 | 2x0.75 | 8.0 | 14.7 | 5.5 | 6.7 | 1.8 | 2.1 | BLUE,GRAY |
| TE7510 | 2x0.75 | 10.0 | 16.7 | 5.5 | 6.7 | 1.8 | 2.1 | |
| TE1008 | 2x1.0 | 8.0 | 15.1 | 5.5 | 7.1 | 2.0 | 2.3 | RED |
| TE1010 | 2x1.0 | 10.0 | 17.1 | 5.5 | 7.1 | 2.0 | 2.3 | |
| TE1508 | 2x1.5 | 8.0 | 15.5 | 6.4 | 7.2 | 2.3 | 2.6 | BLACK, YELLOW |
| TE1512 | 2x1.5 | 12.0 | 19.5 | 6.4 | 7.5 | 2.3 | 2.6 | |
| TE2510 | 2x2.5 | 10.0 | 18.5 | 8.0 | 8.5 | 2.9 | 3.3 | GRAY, BLUE |
| TE2513 | 2x2.5 | 13.0 | 21.5 | 8.0 | 8.5 | 2.9 | 3.3 | |
| TE4012 | 2x4.0 | 12.0 | 23.1 | 8.8 | 11.1 | 3.8 | 4.2 | ORANGE, GRAY |
| TE6014 | 2x6.0 | 14.0 | 26.1 | 9.5 | 12.1 | 4.9 | 5.3 | GREEN, YELLOW |
| TE10-14 | 2x10.0 | 14.0 | 26.6 | 12.6 | 12.0 | 6.5 | 6.9 | BROWN, RED |
| TE16-14 | 2x16.0 | 14.0 | 31.3 | 19.0 | 17.3 | 8.3 | 8.7 | MILE, BLUE |
