SC Copper Cable Lugs
Tin-plated copper lugs with inspection hole - 41 sizes for power cables.

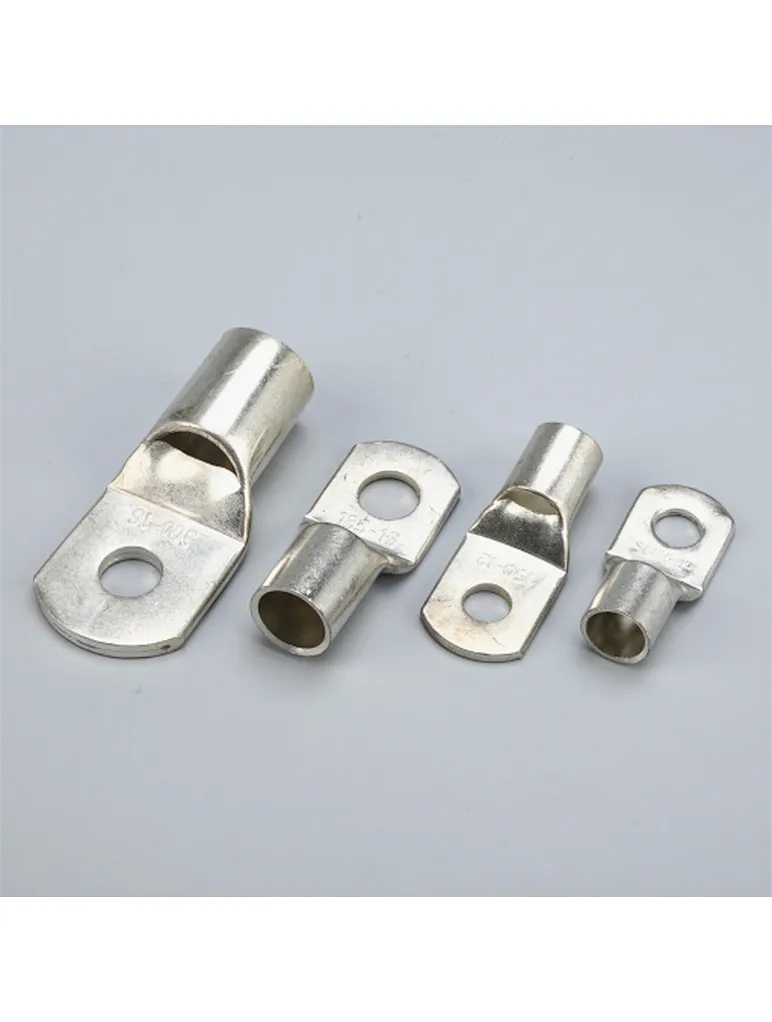

SC Copper Cable Lugs are built for power transmission where a connection has to carry real current and stay dependable for years. The high-conductivity copper body is tin-plated for maximum durability and corrosion resistance in demanding environments, and the palm end is drilled to accept the stud size you need.
The detail that sets this range apart is the precision inspection hole in the barrel. It lets you visually confirm that the cable is fully inserted before crimping - eliminating the hidden, under-crimped joints that cause failures later. That single check point makes these lugs the dependable choice for high-stakes connections.
The range covers 41 sizes, from modest cross-sections up to substantial power cables. Ideal for industrial machinery, automotive systems, power distribution and any installation where a secure, verifiable lug connection is required.
Key Features
- High-conductivity copper, tin-plated for durability
- Precision inspection hole for visual insertion confirmation
- 41 sizes covering power cable cross-sections
- Drilled palm accepts standard studs
- Stable performance under continuous load
- Bulk packaging for contractors
Applications
Power distribution, industrial machinery, switchgear, automotive systems and heavy electrical installations requiring verified lug connections.
Specifications
| ITEM NO | ΦD | Φd1 | E | H | K | B | Φd2 | F | L | R |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.5-5 | 4 | 2.2 | 5 | 5 | 2 | 8 | 5.3 | 1 | 16 | 5 |
| 2.5-4 | 4.5 | 2.9 | 7 | 5 | 2 | 8 | 4.3 | 1 | 18 | 7 |
| 2.5-5 | 6 | 5.3 | 20 | |||||||
| 2.5-6 | 10 | 6.4 | 0.8 | |||||||
| 4-5 | 5.2 | 3.6 | 7 | 6 | 2 | 10 | 5.3 | 1 | 20 | |
| 4-6 | 6.4 | |||||||||
| 6-5 | 6 | 4.2 | 9 | 6 | 3 | 10 | 5.3 | 1.2 | 23 | |
| 6-6 | 7.5 | 6.4 | 26 | |||||||
| 6-8 | 12 | 8.4 | 1 | |||||||
| 10-6 | 7 | 5 | 9 | 8 | 3.5 | 12.4 | 6.4 | 1.3 | 26.5 | |
| 10-8 | 8.4 | 27.5 | ||||||||
| 16-6 | 7.8 | 5.8 | 9 | 8 | 4 | 12.4 | 6.4 | 1.3 | 31 | |
| 16-8 | 8.4 | |||||||||
| 25-6 | 9.5 | 7.5 | 12 | 8 | 4.5 | 14 | 6.4 | 2 | 32 | 10 |
| 25-8 | 9 | 15.5 | 8.4 | 1.6 | 34 | |||||
| 25-10 | 10.5 | 17.5 | 10.5 | 1.4 | 37 | |||||
| 35-6 | 11.4 | 8.6 | 15 | 9.5 | 5 | 15.5 | 6.4 | 2.8 | 38 | |
| 35-8 | 8.4 | |||||||||
| 35-10 | 10.5 | 17.5 | 10.5 | 2.5 | 40.5 | |||||
| 50-8 | 12.6 | 9.6 | 16 | 6 | 18 | 8.4 | 2.8 | 43.5 | ||
| 50-10 | 11 | 10.5 | ||||||||
| 70-8 | 15 | 12 | 18 | 13 | 7 | 21 | 8.4 | 2.8 | 50 | 14 |
| 70-10 | 10.5 | |||||||||
| 70-12 | 13 | |||||||||
| 95-10 | 17.4 | 13.5 | 20 | 13 | 9 | 25 | 10.5 | 3.9 | 55 | |
| 95-12 | 13 | |||||||||
| 120-12 | 19.8 | 15 | 22 | 14 | 10 | 28 | 13 | 4.7 | 60 | 16 |
| 120-16 | 17 | 78 | ||||||||
| 150-12 | 21.2 | 16.5 | 26 | 16 | 11 | 13 | 4.7 | 69 | ||
| 150-16 | 30 | 17 | ||||||||
| 185-16 | 23.5 | 18.5 | 32 | 17 | 12 | 34 | 17 | 5 | 78 | |
| 240-16 | 26.5 | 21.5 | 38 | 20 | 14 | 38 | 17 | 5.5 | 92 | |
| 240-20 | 21 | |||||||||
| 300-16 | 30 | 23.5 | 42 | 22 | 15 | 43 | 17 | 6.5 | 101 | 24 |
| 300-20 | 21 | |||||||||
| 400-16 | 36.5 | 28.5 | 44 | 26 | 18 | 51.3 | 17 | 8 | 114 | 32 |
| 400-20 | 21 | |||||||||
| 500-16 | 39 | 30.5 | 48 | 28 | 20 | 56 | 17 | 9 | 124 | 32 |
| 500-20 | 21 | |||||||||
| 630-20 | 45 | 35.5 | 56 | 33 | 22 | 65 | 21 | 10 | 144 | 40 |
