Nylon Fully Insulated Female-Male Connectors
Fully nylon-insulated male/female quick disconnects - 8 sizes.

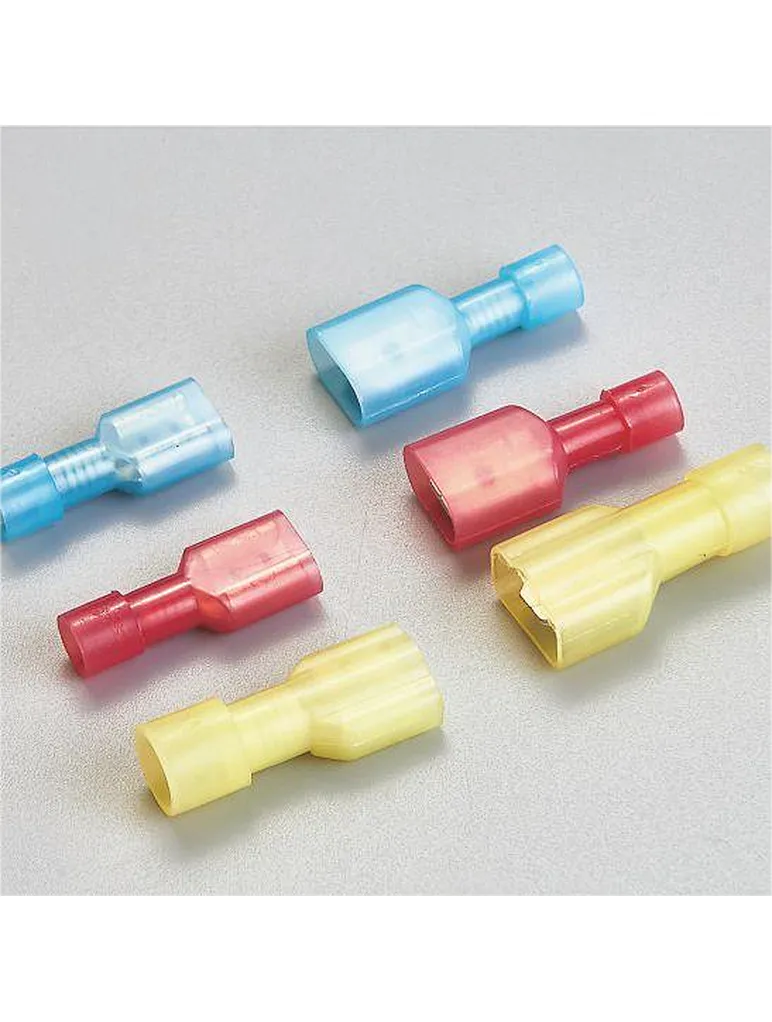

Nylon Fully Insulated Female/Male Connectors bring full insulation to the quick-connect world. The brass contact carries the current, the tin-plated finish keeps it corrosion-free, and the nylon insulation wraps the whole connection - so accidental contact between adjacent terminals in a dense harness is simply not a risk.
The insulation also gives the connection mechanical protection and vibration resistance. Mating is positive and audible, and disconnection is tool-free, keeping installation costs low on assembly lines and in the field.
Color-coded red, blue and yellow match wire sizes in the familiar pattern, and the 8-size range covers the common cable sizes with defined max current ratings. Ideal for automotive, industrial and household electrical systems where insulated quick disconnects are specified.
Key Features
- Full nylon insulation around brass, tin-plated contacts
- Vibration-resistant, secure engagement
- Tool-free connect and disconnect
- Color-coded by wire size: red, blue, yellow
- 8 sizes with defined max current ratings
- Fast installation for production and field work
Applications
Automotive harnesses, industrial electronics and household wiring requiring fully insulated quick-connect terminations.
Specifications
| ITEM NO | Connecting Spec | Dimension (mm) | Cable Size | Max Current | Color | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | F | L | B | ΦD | ΦC | T | |||||
| FDFNY1.25-250 | 0.8*6.35 | 6.6 | 7.3 | 22.0 | 12.0 | 4.0 | 1.7 | 0.45 | 22-16A.W.G | 1max=10A | Red |
| MDFNY1.25-250 | 6.35 | 7.7 | 23.0 | 11.0 | 0.8 | 0.5-1.5mm2 | |||||
| FDNY2-250 | 6.6 | 7.3 | 23.0 | 12.0 | 4.5 | 2.3 | 0.45 | 16-14A.W.G | 1max=15A | Blue | |
| MDFNY2-250 | 6.35 | 7.7 | 24.0 | 11.0 | 0.8 | 1.5-2.5mm2 | |||||
| FDFNY5.5-250 | 6.6 | 7.3 | 23.0 | 12.0 | 5.0 | 3.4 | 0.45 | 12-10A.W.G | 1max=24A | Yellow | |
| MDFNY5.5-250 | 6.35 | 7.7 | 24.0 | 110. | 0.8 | 4-6mm2 | |||||
