Male and Female Spade Connectors
Combined male/female disconnect blocks - add circuits without rework.

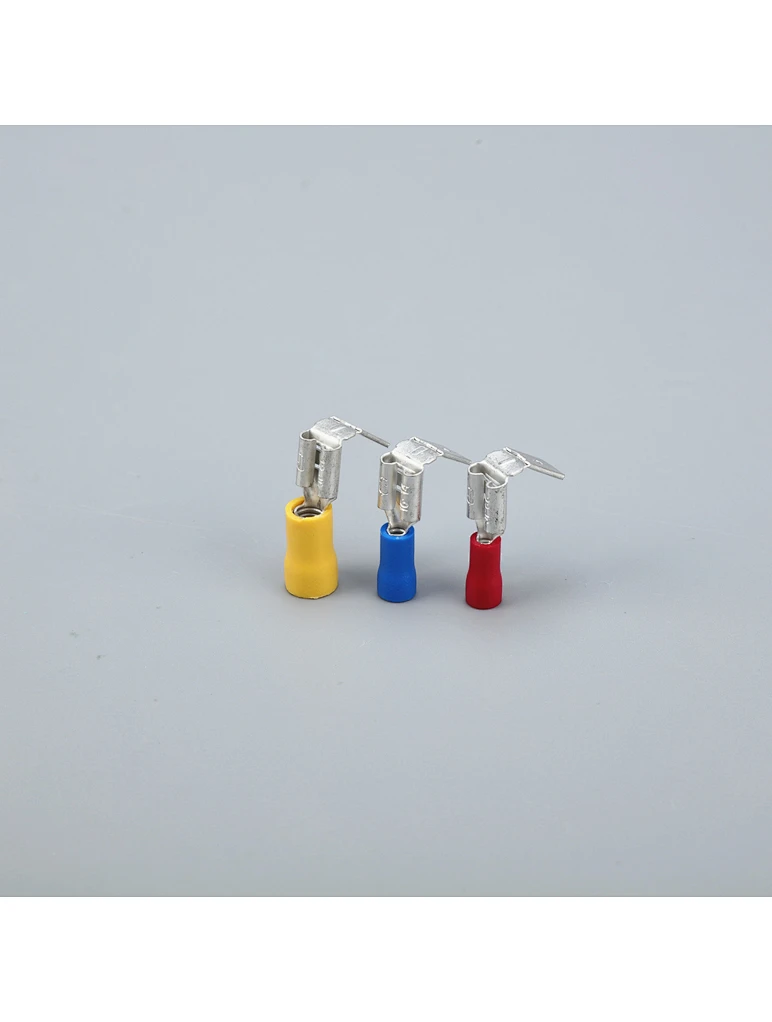

Male and Female Spade Connectors combine a female disconnect and a male tab in one terminal, giving your harness extra flexibility at the connection point. Multiple connection points allow additional circuits to be added to existing equipment without expensive rework - a genuine advantage during prototyping and field upgrades.
The terminals are manufactured from high-quality brass with a corrosion-resistant tin-plated finish, ensuring excellent conductivity and long-lasting performance. The metal insulation grip sleeve crimps onto the wire insulation, protecting the crimp joint during high-vibration applications, while the funnel-entry barrel guides the conductor for a full-depth crimp.
Available in red, blue and yellow insulated options, these spade connectors provide stable current flow in automotive, industrial and household electrical systems. The range is compact in size - 5 sizes - but covers the most commonly used combinations.
Key Features
- Combined female disconnect and male tab in one terminal
- Multiple connection points - add circuits without rework
- Brass construction, tin-plated for corrosion resistance
- Metal insulation grip sleeve protects the crimp joint
- Funnel entry barrel for full-depth crimps
- Red/blue/yellow insulated options
Applications
Automotive electrical systems, industrial control and household wiring where flexible, multi-point quick connections are needed.
Specifications
| ITEM NO | Dwire Range | B | B1 | L | φd1 | φD | H | t | A | |
|---|---|---|---|---|---|---|---|---|---|---|
| AWG/MCM | mm2 | |||||||||
| MF1.25 | 18-16 | 0.75-1.25 | 6.8 | 6.3 | 22 | 1.8 | 3.9 | 9.7 | 0.8 | 10 |
| MF2 | 16-14 | 1.25-2.0 | 6.8 | 6.3 | 22 | 2.3 | 4.2 | 9.7 | 0.8 | 15 |
| MF5.5 | 12-10 | 2.63-6.64 | 6.8 | 6.3 | 22 | 3.5 | 5.5 | 13.7 | 0.8 | 24 |
