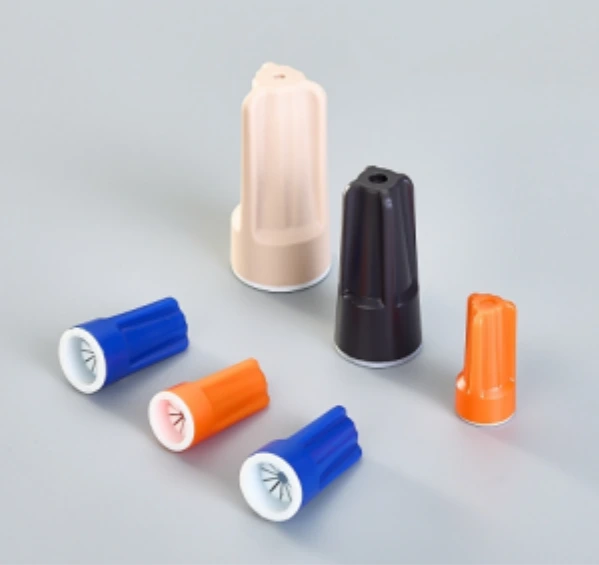

Waterproof Wire Connectors
PP waterproof twist-on wire connectors pre-filled with silicone sealant - sealed against water, dust and corrosion for wet, damp and buried locations, 600 V rated.
Waterproof Wire Connectors are screw-on wire connectors pre-filled with dielectric silicone sealant, so the seal is built in: as the conductor is twisted in, the compound flows around the strands and blocks moisture, dust and corrosion at the point of failure for ordinary connectors. Rated -40 to 105°C and 600 V max, molded from PP with a UL94HB shell.
Installation is the same familiar twist - peel the wire coat, insert the wire, then tighten - and the sealed construction is approved for dry, wet and direct-burial locations. The one-time-use design also acts as a tamper evidence: once torqued, the connector cannot be backed off and reused, which keeps field repairs honest.
Four sizes cover 22-14 AWG (HS-WPX01/02/04) and 14-8 AWG (HS-WPX03), color coded orange, blue, tan and deep gray for at-a-glance identification in the box and on the wall.
Key Features
- Pre-filled with dielectric silicone sealant - no separate grease tube
- Waterproof, dustproof and corrosion proof for wet, damp and buried locations
- PP shell, UL94HB; operating range -40°C to 105°C
- Rated 600 V max for building and outdoor wiring
- One-time-use twist-on - tamper-evident and maintenance-free
- 4 sizes (HS-WPX01-04) covering 22-8 AWG, 100 pcs/bag packing
Applications
Outdoor lighting, landscape and irrigation wiring, pumps and motors, underground feeder splices, automotive and marine connections, and any junction box exposed to moisture, dust or direct burial.
Specifications
| ITEM NO | Height (mm) | Width (mm) | Dia (mm) | Wire Range | Color |
|---|---|---|---|---|---|
| HS-WPX01 | 23.1 | 11 | 8.5 | Max #12AWG / Min #22AWG | Orange |
| HS-WPX02 | 24.8 | 12.5 | 9.2 | Max #12AWG / Min #22AWG | Blue |
| HS-WPX03 | 42.5 | 20.7 | 15.5 | Max #8AWG / Min #14AWG | Tan |
| HS-WPX04 | 36.2 | 17 | 12.5 | Max #18AWG / Min #22AWG | Deep Gray |
