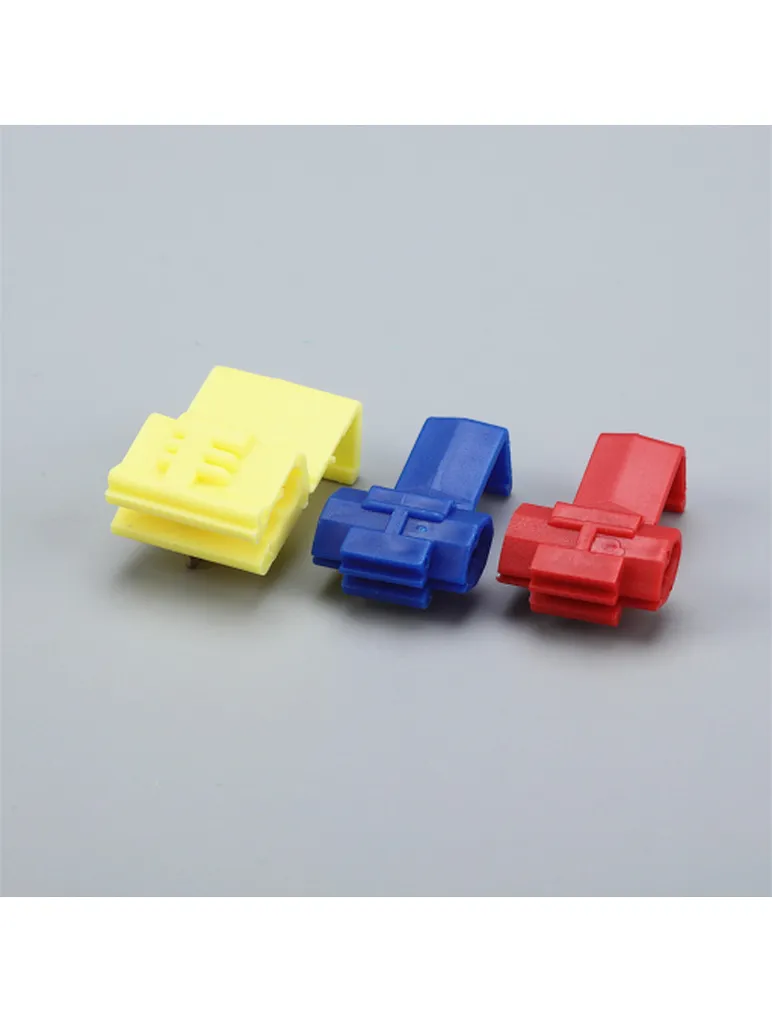

Quick Splice Connectors
Tap splices without stripping - 3 sizes, 1000 pcs/bag, color-coded.
Quick Splice Connectors let you tap into an existing wire without cutting or stripping it - the kind of timesaver that matters on production lines and in automotive rework. Slide the live wire into the channel, clamp down, and the metal contact pierces the insulation to make the connection.
The color-coded range matches wire sizes the same way your other terminals do: red for 22-16 AWG, blue for 16-14 AWG, and yellow for 12-10 AWG. With a compact 20 x 32 mm body, the splice stays unobtrusive in tight harnesses.
Packed 1000 pieces per bag under the WAHSURE brand, these connectors deliver consistent conductivity for industrial, automotive and household electrical systems - and one HS-3M line item covers all three sizes.
Key Features
- No stripping, no cutting - pierces insulation in one step
- Metal contact ensures consistent conductivity
- Red / blue / yellow color coding by wire range (22-16, 16-14, 12-10 AWG)
- Compact body suits tight harness spaces
- 1000 pcs/bag; HS-3M series
- Suitable for solid and stranded wire taps
Applications
Automotive wiring, industrial control panels, appliance repairs and household electrical taps where fast, insulation-piercing splices are needed.
Specifications
| ITEM NO | Dwire Range | L | B | Color | |
|---|---|---|---|---|---|
| AWG/MCM | mm2 | ||||
| 3MR | 22-16 | 0.25-1.65 | 20 | 32 | Red |
| 3MB | 16-14 | 1.04-2.63 | 20 | 32 | Blue |
| 3MY | 12-10 | 2.63-6.64 | 20 | 30 | Yellow |
