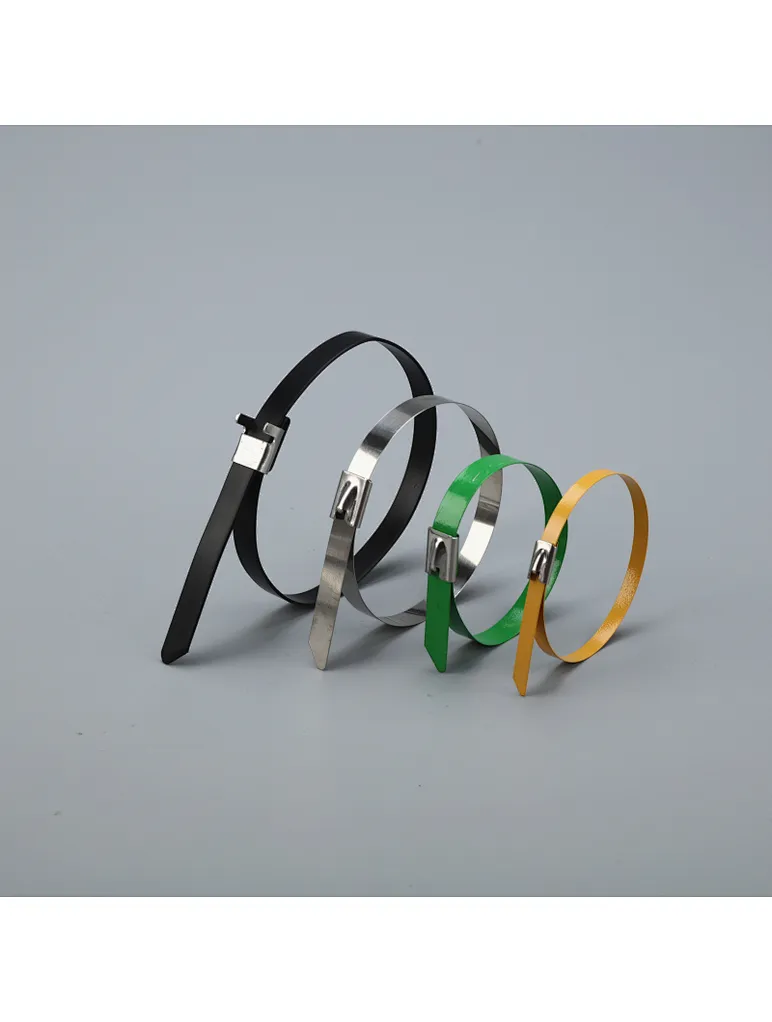

Stainless Steel Cable Ties
AISI 304/316 steel, ball-lock head - rated -80°C to +500°C for corrosive and extreme environments.
When nylon simply cannot do the job, Stainless Steel Cable Ties take over. Made from AISI 304 or 316 stainless steel with a ball-lock head, they are rated for -80°C to +500°C and shrug off corrosion, UV, radiation, vibration and weathering that destroy plastic ties in months.
The ball-lock mechanism installs quickly with a simple tool - wrap, tension, lock - and holds tight in power stations, petrochemical plants, mines, shipyards and offshore platforms. Hoses, cables, poles and pipes stay secured in conditions where a failed tie means a shutdown.
Natural finish or coated colors, in standard packs or custom quantities. Material certificates traceable to the melt are available for specification-driven projects.
Key Features
- AISI 304 or 316 stainless steel for corrosive environments
- Ball-lock head for quick installation and secure retention
- Rated -80°C to +500°C
- Resists corrosion, vibration, UV, radiation and weathering
- Natural or coated colors; material certificates available
Applications
Power stations, petrochemical plants, mining, shipbuilding, offshore platforms and any aggressive indoor, outdoor or underground environment.
Specifications
| ITEM NO | LENGTH (MM) | WIDTH (MM) | Max. Bundle Dia | Tensile Strength | ||
|---|---|---|---|---|---|---|
| INCH | MM | (mm) | LBS | N | ||
| HS-4.6x150SST | 5.9 | 150 | 4.6 | 37 | 225 | 1000 |
| HS-4.6x200SST | 7.9 | 200 | 4.6 | 50 | ||
| HS-4.6x250SST | 9.8 | 250 | 4.6 | 63 | ||
| HS-4.6x300SST | 11.8 | 300 | 4.6 | 76 | ||
| HS-4.6x350SST | 13.8 | 350 | 4.6 | 89 | ||
| HS-4.6x400SST | 15.7 | 400 | 4.6 | 102 | ||
| HS-4.6x450SST | 17.7 | 450 | 4.6 | 115 | ||
| HS-4.6x500SST | 19.7 | 500 | 4.6 | 128 | ||
| HS-7.9x150SST | 5.9 | 150 | 7.8 | 25 | 500 | 2220 |
| HS-7.9x200SST | 7.9 | 200 | 7.8 | 37 | ||
| HS-7.9x250SST | 9.8 | 250 | 7.8 | 63 | ||
| HS-7.9x300SST | 11.8 | 300 | 7.8 | 76 | ||
| HS-7.9x350SST | 13.8 | 350 | 7.8 | 89 | ||
| HS-7.9x400SST | 15.7 | 400 | 7.8 | 102 | ||
| HS-7.9x450SST | 17.7 | 450 | 7.8 | 115 | ||
| HS-7.9x500SST | 19.7 | 500 | 7.8 | 128 | ||
| HS-7.9x550SST | 21.7 | 550 | 7.8 | 141 | ||
| HS-7.9x600SST | 23.6 | 600 | 7.8 | 154 | ||
| HS-12x150SST | 5.9 | 150 | 12 | 37 | 700 | 3115 |
| HS-12x200SST | 7.9 | 200 | 12 | 50 | ||
| HS-12x250SST | 9.8 | 250 | 12 | 63 | ||
| HS-12x300SST | 11.8 | 300 | 12 | 76 | ||
| HS-12x350SST | 13.8 | 350 | 12 | 89 | ||
| HS-12x400SST | 15.7 | 400 | 12 | 102 | ||
| HS-12x450SST | 17.7 | 450 | 12 | 115 | ||
| HS-12x500SST | 19.7 | 500 | 12 | 128 | ||
| HS-12x550SST | 21.7 | 550 | 12 | 141 | ||
| HS-12x600SST | 23.6 | 600 | 12 | 154 | ||
| HS-16x200SST | 7.9 | 200 | 15 | 37 | 920 | 4100 |
| HS-16x250SST | 9.8 | 250 | 15 | 63 | ||
| HS-16x300SST | 11.8 | 300 | 15 | 76 | ||
| HS-16x350SST | 13.8 | 350 | 15 | 89 | ||
| HS-16x400SST | 15.7 | 400 | 15 | 102 | ||
| HS-16x450SST | 17.7 | 450 | 15 | 115 | ||
| HS-16x500SST | 19.7 | 500 | 15 | 128 | ||
| HS-16x550SST | 21.7 | 550 | 15 | 141 | ||
| HS-16x600SST | 23.6 | 600 | 15 | 154 | ||
| HS-16x650SST | 25.6 | 650 | 15 | 167 | ||
| HS-16x700SST | 27.6 | 700 | 15 | 175 | ||
| HS-16x800SST | 31.5 | 800 | 15 | 193 | ||
| HS-16x1000SST | 39.4 | 1000 | 15 | 206 | ||
