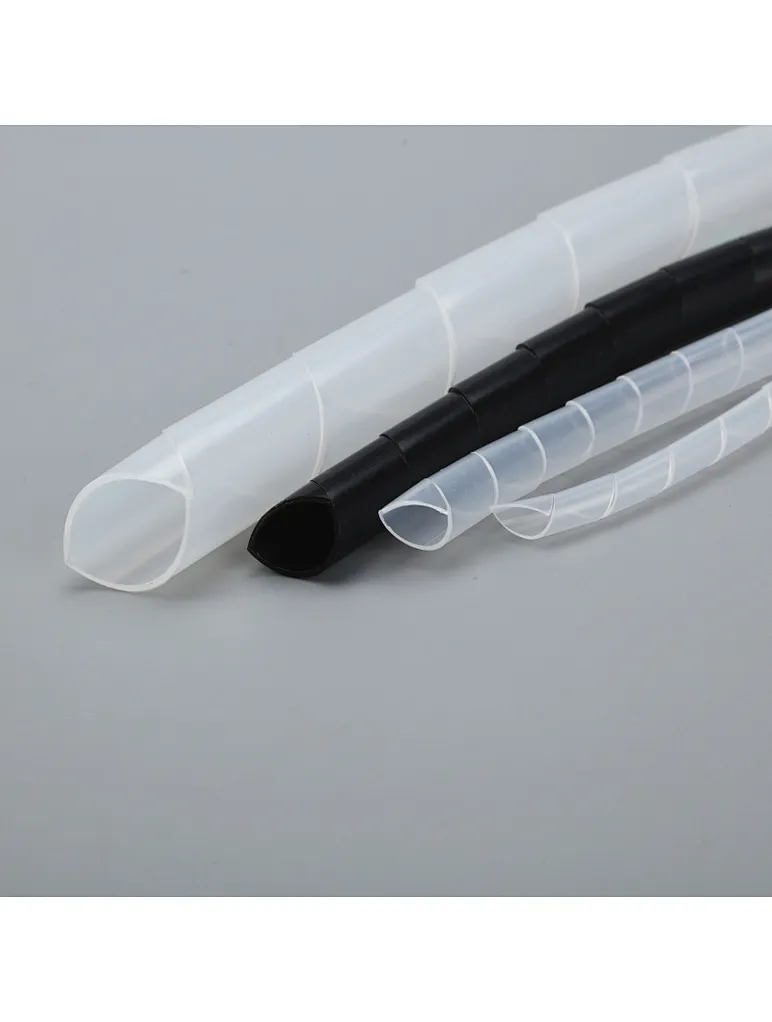

Spiral Wrapping Bands
PE spiral wrap in 10 m rolls - bundle and protect wires in one continuous sleeve.
Spiral Wrapping Band turns a handful of loose wires into one neat, protected bundle. The PE spiral sleeve winds around the cables clockwise, tightening as it goes, and stays flexible enough to be opened up at any point to add or remove a wire.
It protects the wires from abrasion, keeps them insulated and tidy, and runs continuously from a 10-meter roll - cut to the length you need and keep the rest for the next job. Operating range -40°C to +80°C.
Natural or black, with inner diameters sized to bundle diameters in the spec table.
Key Features
- Continuous PE spiral wrap in 10 m rolls
- Bundle any number of wires into one protected run
- Open at any point to add or remove wires
- Abrasion protection and tidy insulation
- -40°C to +80°C; natural or black
Applications
Harness bundling in industrial, automotive and residential wiring, plus general wire organization and protection projects.
Specifications
| ITEM NO | Inside Dia. | Outside Dia. | W | Bundle Dia. | |||
|---|---|---|---|---|---|---|---|
| mm | Inch | mm | Inch | mm | Inch | mm | |
| HS-SWB-06 | 4 | 0.16 | 6 | 0.24 | 7 | 0.28 | 4-50 |
| HS-SWB-08 | 6 | 0.24 | 8 | 0.31 | 10.8 | 0.43 | 6-60 |
| HS-SWB-10 | 7.5 | 0.3 | 10 | 0.39 | 11.4 | 0.45 | 7.5-60 |
| HS-SWB-12 | 9 | 0.35 | 12 | 0.47 | 13.9 | 0.55 | 9-65 |
| HS-SWB-15 | 12 | 0.47 | 15 | 0.59 | 15 | 0.59 | 12-75 |
| HS-SWB-19 | 15 | 0.59 | 19 | 0.75 | 18.2 | 0.72 | 15-100 |
| HS-SWB-24 | 20 | 0.79 | 24 | 0.94 | 19.6 | 0.77 | 20-130 |
