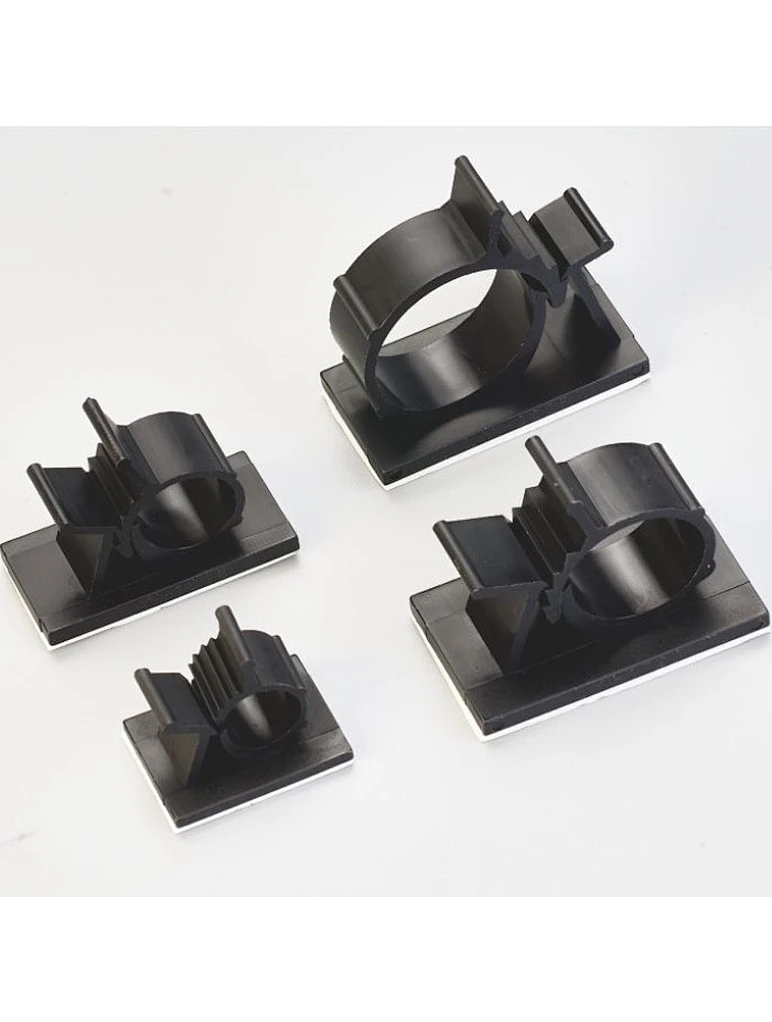

Self-Adhesive Cable Clamps
One-piece stick-on clips - instant fixing where drilling is not possible.
Self-Adhesive Cable Clamps fix cables and hoses anywhere a screw or nail cannot go. The one-piece clip carries its own adhesive pad - peel, press, and the clamp is in place in seconds.
That makes them the natural choice for areas with limited access, finished surfaces, glass, painted panels and locations where drilling is simply not an option. Wires, cables or hoses up to the clamp size slip in and out for later changes.
UL94V-2 Nylon 66, black, 100 per pack or custom quantities. Hole and size dimensions are in the spec table for design-in.
Key Features
- One-piece clip with self-adhesive pad - peel and press
- Ideal where drilling or screwing is not possible
- Suitable for limited-access and finished surfaces
- UL94V-2 Nylon 66, black
- Dimensions in spec table for design-in
Applications
Finished surfaces, glass, painted panels, vehicle interiors, cabinets and temporary or permanent low-load cable routing.
Specifications
| ITEM NO | φA | B | C | D | E | F |
|---|---|---|---|---|---|---|
| MM | MM | MM | MM | MM | MM | |
| HS-AC0810 | 7.9-10.3 | 25.4 | 22.2 | 19.1 | 1.6 | 10.2 |
| HS-AC1013 | 10-12.5 | 31.8 | 27.8 | 19.1 | 1.6 | 10.2 |
| HS-AC1316 | 12.6-15.4 | 37 | 31.8 | 18.4 | 3 | 12.1 |
| HS-AC1720 | 16.5-20.1 | 42 | 37 | 25 | 3 | 12.7 |
| HS-AC2225 | 22.2-25.4 | 41.8 | 43.5 | 21.5 | 3 | 11.3 |
