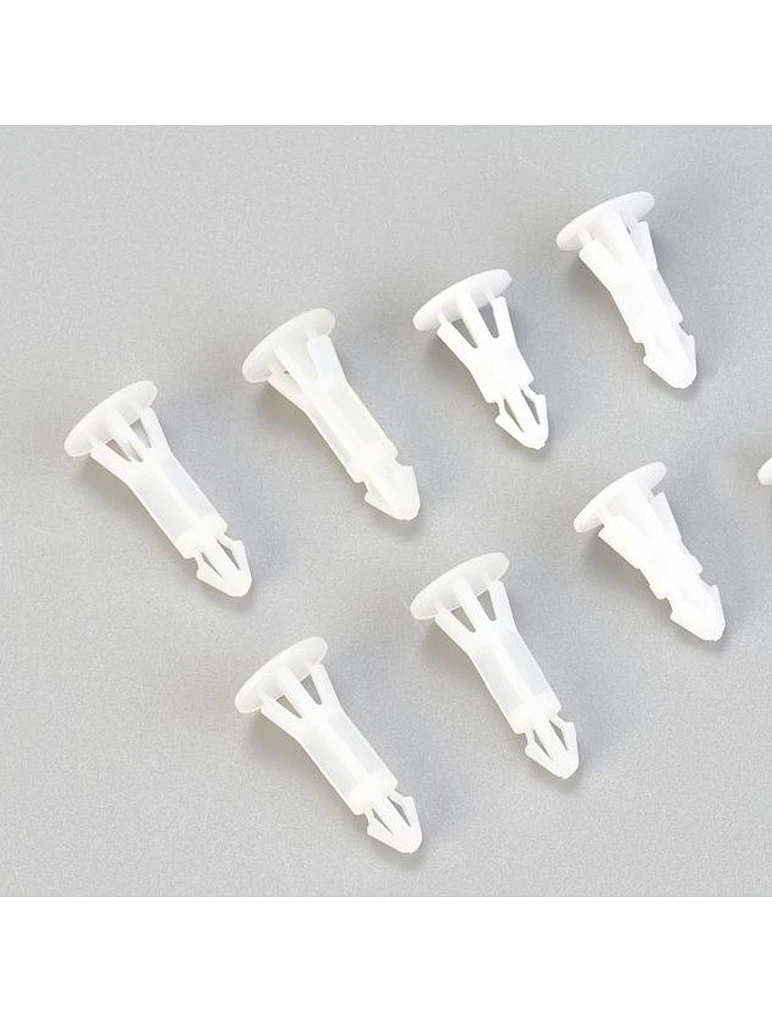

Nylon PCB Spacers
Reverse-locking PCB supports - hand-installed standoffs that hold boards firm.
Nylon PCB Spacers support and position printed circuit boards inside electronic devices. The reverse-locking design is pushed into the chassis hole from the underside and locks in place, holding the board at a fixed standoff height without any assembly equipment - just hand pressure.
The locking profile prevents the board from moving during operation and vibration, while maintaining correct spacing and clearance for components and airflow. Ideal for heavily loaded boards where holes or slots in the chassis provide the fixing.
UL94V-2 Nylon 66, white, 100 per pack or custom quantities. Board heights and hole sizes are listed in the spec table.
Key Features
- Reverse-locking design installs from the chassis underside
- Hand installation - no assembly tools required
- Holds boards at fixed standoff height, prevents movement
- Supports heavily loaded PCBs
- UL94V-2 Nylon 66, white
Applications
PCB mounting in industrial, automotive and consumer electronics, control units and any board needing locked standoff support.
Specifications
| ITEM NO | A | SIZE | NOTE | |
|---|---|---|---|---|
| MM | Inch | MM | ||
| HS-PCBA8 | 8 | 0.31 | φ10x3.8x8 | 76711016 |
| HS-PCBA10 | 10 | 0.39 | φ10x3.8x10 | 7671101601 |
| HS-PCBA13 | 13 | 0.51 | φ10x3.8x13 | 7671101602 |
| HS-PCBA16 | 16 | 0.63 | φ10x3.8x16 | - |
