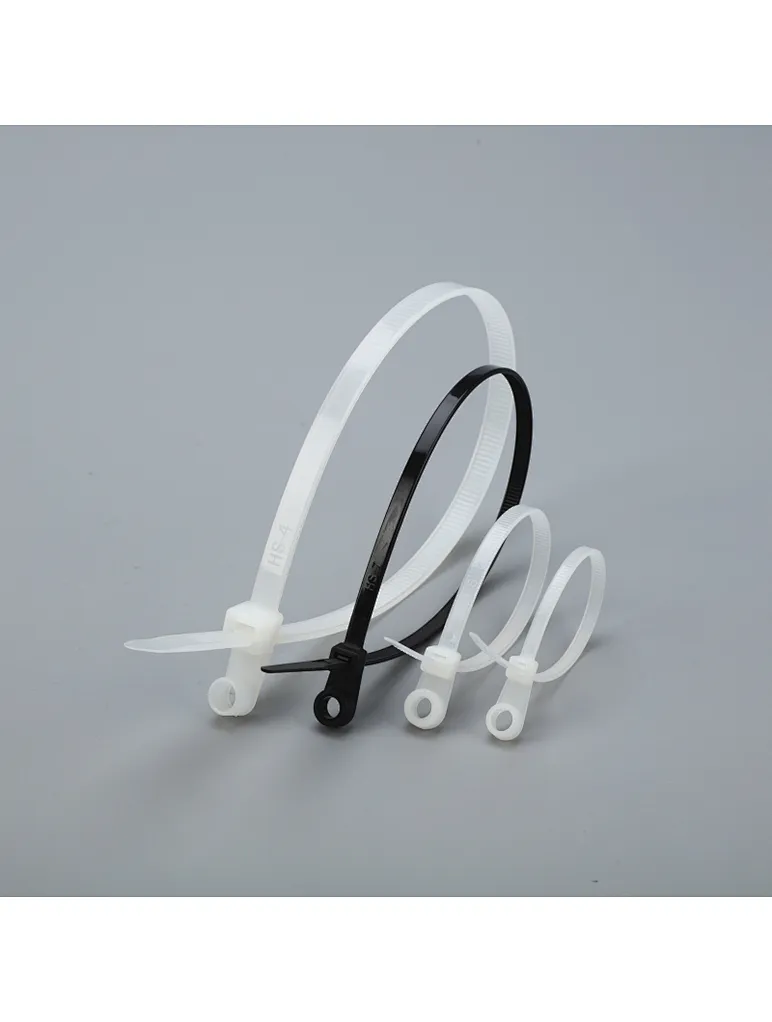

Mountable Head Cable Ties
One-piece built-in screw hole - bundle the cables and mount the tie to panel, wall or ceiling.
Mountable Head Cable Ties bundle wires and mount them in a single component. The one-piece head integrates a screw hole, so you fix the tie to a control panel, wall or ceiling, then close the strap around the bundle - no separate mounts, no extra parts to lose.
The all-nylon construction eliminates the metal inserts that corrode and rattle, giving consistent, long-term performance in automotive, shipbuilding and rail applications where vibration is a fact of life.
UL94V-2 certified Nylon 66, white and black, 100 pieces per pack or custom packaging for production programs.
Key Features
- One-piece built-in screw hole - no separate mount required
- All-plastic construction, no metal insert to corrode
- UL94V-2 Nylon 66, operating -40°C to +85°C
- Proven in automotive, shipbuilding and rail sectors
- White and black; 100 pcs/pack or custom packaging
Applications
Control panels, equipment cabinets, shipbuilding, rail transportation and any application that needs a fixed, vibration-resistant mount point.
Specifications
| ITEM NO | LENGTH (MM) | WIDTH (MM) | Max. Bundle Dia | Appliance hole | Tensile Strength | ||
|---|---|---|---|---|---|---|---|
| INCH | MM | (mm) | (mm) | LBS | N | ||
| HS-170MT | 6 6/9'' | 170 | 3.6 | 35 | 5.4 | 40 | 18 |
| HS-190MT | 7'' | 190 | 4.8 | 46 | 5 | 50 | 22 |
| HS-370MT | 14 1/2'' | 370 | 7.6 | 82 | 6.5 | 120 | 55 |
| HS-300MT | 11 5/8'' | 300 | 4.8 | 102 | 5 | 50 | 22 |
