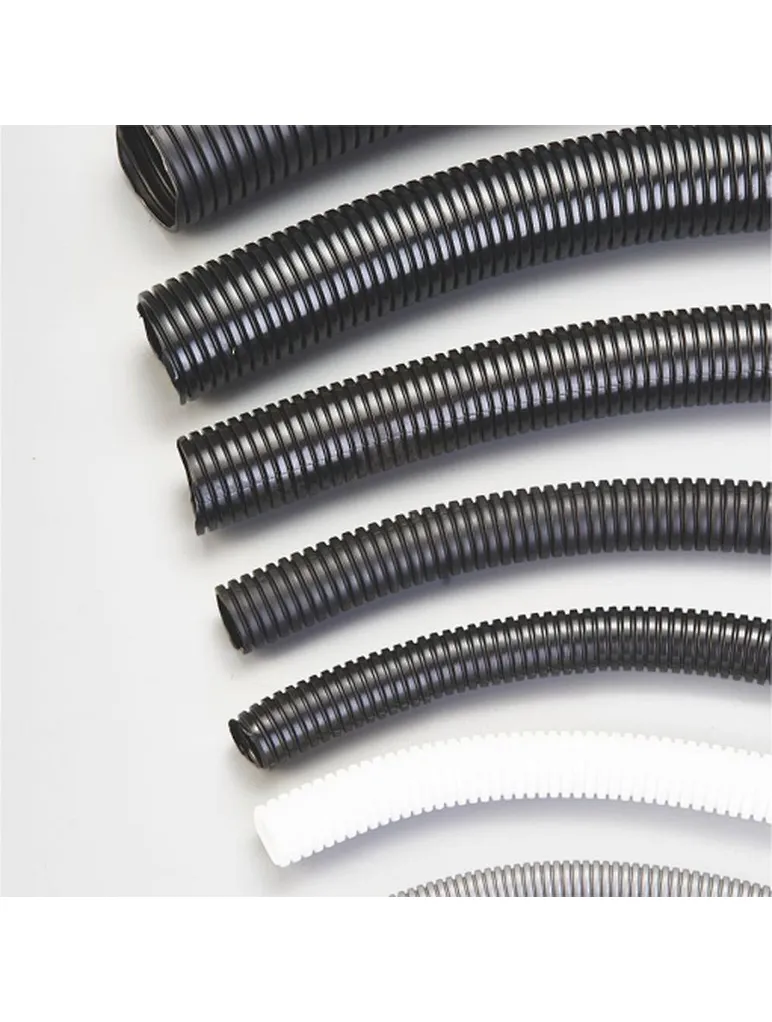

Flexible Conduits
PE/PP/PA corrugated conduits - flexible protection for wiring in machinery and buildings.
Flexible Conduits protect wiring through machinery, building harnesses and industrial environments where a rigid pipe would be impractical. The corrugated PE, PP or PA construction flexes around corners and follows the machine's movement while shielding the cables from wear, abrasion and environmental attack.
Choose the material by duty: PE for general service, PP where chemical resistance matters, PA where extra mechanical toughness is needed. Sizes run from small-bore wiring up to heavy cable runs, with packing lengths in the spec table.
Black, supplied in standard packing lengths or custom quantities, and easy to cut and terminate on site.
Key Features
- PE, PP or PA grades for different duty levels
- Flexible - routes around corners and moving machine parts
- Protects wiring from wear, abrasion and contamination
- Sizes from small bore to heavy cable runs
- Easy to cut and terminate on site
Applications
Industrial machinery, building wiring, automotive harnesses and commercial installations requiring flexible cable protection.
Specifications
| ITEM NO | Inside Dia. mm | Outside Dia. mm | Packing (M) | ||
|---|---|---|---|---|---|
| HC-FC7 | 4.7 | 7 | 200 | ||
| HC-FC10 | 6.5 | 10 | 100 | ||
| HC-FC11 | 8.5 | 11 | 100 | ||
| HC-FC13 | 10 | 13 | 100 | ||
| HC-FC16 | 12 | 15.8 | 100 | ||
| HC-FC18.5 | 14.3 | 18.5 | 100 | ||
| HC-FC21 | 17 | 21.2 | 100 | ||
| HC-FC25 | 21 | 25 | 100 | ||
| HC-FC28.5 | 23 | 28.5 | 50 | ||
| HC-FC34.5 | 29 | 34.5 | 50 | ||
| HC-FC42.5 | 36 | 42.5 | 50 | ||
| HC-FC54.5 | 48 | 54.5 | 25 | ||
