TERMINALBLOCKS
接线端子
- 接线端子
- ：U(W),V(F)
- 材质：采用PA,PE或PP料制成
- Terminal blocks:U(W),V(F)Type
- Material:made from PA, PE or PP.

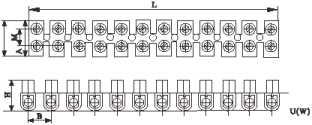

Specifications
| 编号Item No. | L | W | H | A | B | mm2 | VOLT | AMP | 包装Packing |
|---|---|---|---|---|---|---|---|---|---|
| TBS-3A | 93 | 16 | 12 | 6 | 8 | 4 | 400V | 3A | 10PCS |
| TBS-5A | 115 | 15.7 | 13 | 6.5 | 9.5 | 6 | 400V | 6A | |
| TBS-10A | 126 | 20.2 | 15.5 | 8.4 | 10.5 | 10 | 400V | 10A | |
| TBS-15A | 139 | 23 | 17.7 | 10.3 | 12 | 12 | 400V | 16A | |
| TBS-20A | 155 | 25 | 19.2 | 11.5 | 13.5 | 14 | 400V | 20A | |
| TBS-30A | 171 | 26 | 20.5 | 12 | 14.5 | 16 | 400V | 30A | |
| TBS-60A | 192 | 30 | 26 | 13.5 | 16.5 | 25 | 400V | 60A | |
| TBS-80A | 205 | 33 | 27 | 15 | 17 | 35 | 400V | 80A | |
| TBS-100A | 250 | 46 | 31 | 22 | 21 | 40 | 400V | 140A |
