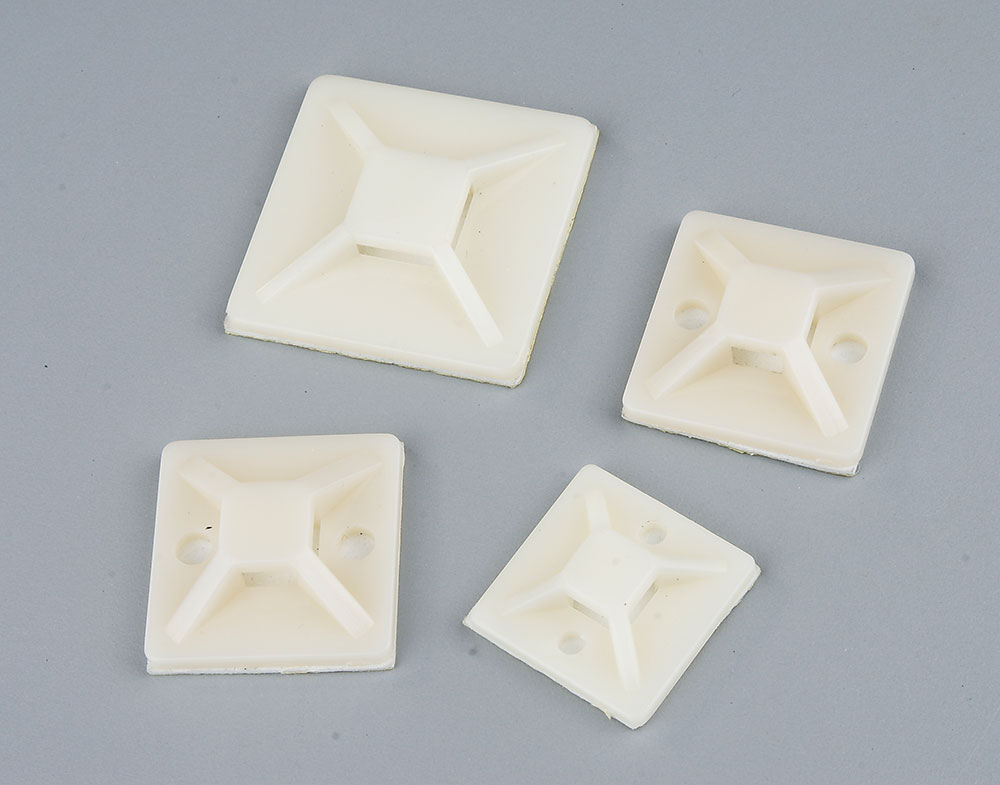

SELF-ADHESIVE TIE MOUNT
定位片
- 外売材料采用ABS^NYLON材料制成，防火等S194V-2,背面覆双面海绵胶, 绝缘性能好，耐久性不易送化
- 使用方法：将定位片海绵娜开，贴天机板固定，再用扎带捆扎电缆。
- 省时、简便、供面板不可以钻孔时使用
- Material:ABS,NYLON the back attached sponge glue Imported.
- Usage:Peelthe sponge glue and stick on the wall the叫bundle the wire with cable ties.
- Application:for bunding wires and other things save time
- and convenient.used fbr the wall which can't bemade a hole in.
Specifications
| 编号Item No. | 长L | 宽W | 高H | 螺丝孔T | 扎带穿孔 | 材质material |
|---|---|---|---|---|---|---|
| HSP-20 | 20 | 20 | 6.1 | 2.9 | 5 | ABS |
| HSP-25 | 25 | 25 | 7.5 | 3.5 | 6.2 | |
| HSP-30 | 30 | 30 | 8.7 | 4.5 | 6.4 | |
| HSP-40 | 40 | 40 | 6.4 | 4.5 | 10.8 | |
| HSP-12.5N | 12.5 | 12.5 | 4.5 | - | 2.9 | NYLON 66 |
| HSP-20N | 20 | 20 | 5 | - | 4.5 | |
| HSP-22.5N | 22.5 | 22.5 | 5 | - | 4.5 | |
| HSP-28N | 28 | 28 | 6.4 | 6.4 | 5.5 |
